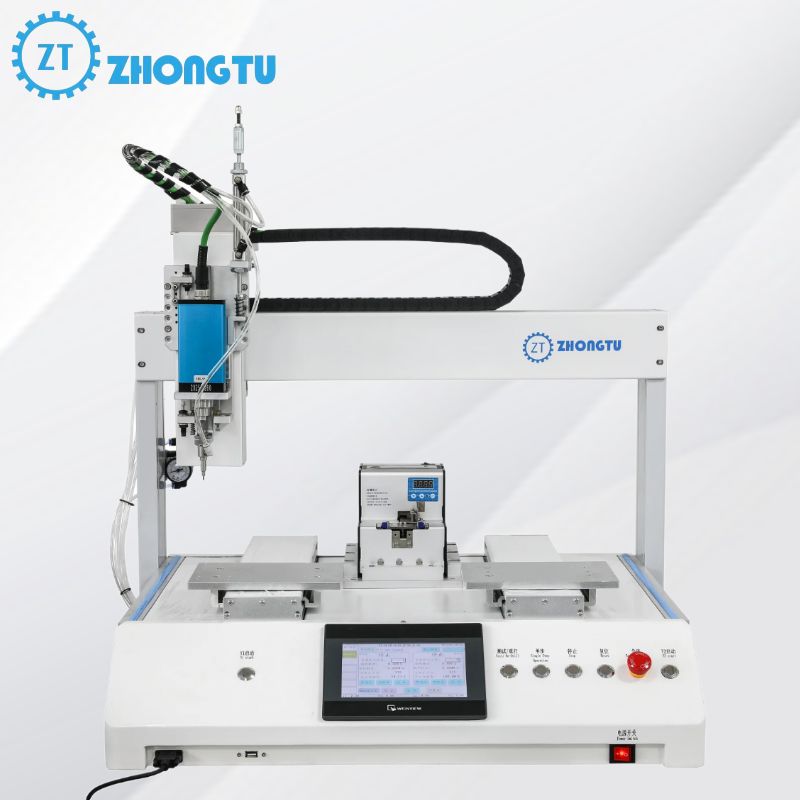

On-Line Assembly Line Screw Fastening Workstation
Professional automated screw tightening, locking, and fastening solution for manufacturing applications.
Product Specifications
| Product Name |
Screw Locking Machine |
| Condition |
New |
| Applicable Industries |
Manufacturing Plant, Household Appliances Factory |
| Voltage |
AC 110-220V 50/60HZ |
| Dimensions |
800 * 700 * 850mm (W*D*H) |
| Adjustable Torque Range |
0.5~20Nm |
| Weight |
85kg |
| Positioning Accuracy |
±0.02mm |
| Locking Screw Specifications |
Screw M0.8 to M5 |
| Work Efficiency |
1.2-1.5 seconds per piece |
| Percent of Pass |
≥99.5% |
Model Specifications
| Model |
ZT-LSJ041 |
ZT-LSJ0441-01T |
ZT-LSJ0441-02T |
ZT-LSJ4411-BKB |
Fixture Customization |
| Screw Feeding |
Pick and Place, Magnetic |
As Needed |
| Working Air Pressure |
0.4~0.6MPA |
| Adjustable Torque Range |
0.8-20Nm |
| Machine Axis Number |
3 axis |
4 axis |
4 axis |
4 axis |
Max moving speed |
| X Axis |
400mm |
400mm |
400mm |
400mm/2X |
600mm/s |
| Y Axis |
300mm |
300mm/2Y |
300mm/2Y |
300mm/2Y |
600mm/s |
| Z Axis |
100mm |
100mm |
100mm |
100mm |
400mm/s |
| Weight (Kg) |
50Kg |
65Kg |
65Kg |
85Kg |
Customized |
| Size (mm) |
600*750*850 |
800*750*850 |
850*750*850 |
1000*750*850 |
To order |
Product Features
- Ultra-High Precision Positioning: Repeat positioning accuracy up to ±0.02mm, ensuring pinpoint accuracy in every fastening operation
- Wide Torque Adjustment Range: Stepless torque regulation from 0.5–20Nm, effortlessly adapting to diverse applications from precision electronics to industrial assembly
- Rapid Cycle Time: Processing speed of just 1.2–1.5 seconds per piece, dramatically boosting production line throughputExceptional
- Quality Assurance: Pass rate ≥99.5%, delivering consistent performance that minimizes rework and scrap costs
- Flexible Screw Feeding Options: Multiple feeding configurations available to accommodate various line layouts and process requirements
- Intelligent Touch Control: Equipped with a high-performance microcontroller and HD touch panel for intuitive operation and clear parameter visibility
- Open Data Interfaces: Standard USB and RS232 communication ports for seamless integration with MES and host computer systems
- High Safety Standard Design: Full-machine architecture built to rigorous safety standards, safeguarding both operators and equipment
Product Images
Manufacturer Profile
Shenzhen Zhongtu Automation Technology Co., Ltd. is a comprehensive high-tech enterprise deeply rooted in the automation industry, integrating R&D, precision manufacturing, commissioning, and full-lifecycle after-sales service. Driven by cutting-edge design concepts and advanced manufacturing technologies, we are dedicated to delivering end-to-end automation solutions to our clients.
Founded in Shenzhen, China's innovation hub, Zhongtu Automation has grown into a trusted partner for manufacturers seeking intelligent transformation. Our team comprises seasoned engineers and technical specialists with extensive experience in mechanical design, electrical control, software development, and system integration. We maintain a relentless focus on innovation, quality, and customer satisfaction.
Our Mission: To empower manufacturing enterprises with intelligent, efficient, and reliable automation equipment that drives sustainable competitive advantage.
Our Vision: To become a globally recognized leader in automation technology, setting industry benchmarks for precision, efficiency, and service excellence.
Our Advantages
- Tooling Fixtures & Hardware Jigs Manufacturing: Custom-designed fixtures and jigs engineered for optimal clamping accuracy and operational durability across various production environments
- Precision Machining & Non-Standard Parts Processing: CNC machining, milling, turning, and grinding services for bespoke mechanical components with tight tolerances
- Production Line Optimization Solutions: Comprehensive analysis and redesign of existing workflows to eliminate bottlenecks, reduce cycle times, and maximize overall equipment effectiveness (OEE)
- Automated Production Line Upgrades: Retrofitting legacy equipment with modern automation technologies to extend asset lifespan and boost productivity
- Non-Standard Automation Equipment Design & Manufacturing: Turnkey custom automation systems tailored to specific product requirements, from concept validation to mass production
- Automatic Loading & Unloading Manipulator Systems: Robotic handling solutions integrating vision systems, servo drives, and intelligent control for unmanned material flow
Packaging & Shipping
Customer Services
| Pre-Sale Services |
In-Sale Services |
After-Sale Services |
- Product Introduction
- Technical Communication
- Remote Consulting Service
|
- Product Demonstration
- Detailed Usage Instructions
- Customer Query Resolution
|
- Video Technical Support
- 1-Year Full Equipment Warranty
- 3-Year Warranty on Guide Rail/Motor/Control Parts
|
Frequently Asked Questions
Who are we?
Based in Guangdong, China since 2015, with 11-50 professionals in our office.
How do we guarantee quality?
Pre-production samples before mass production; final inspection before shipment.
What products do we offer?
Soldering machines, Precision spot welding machines, Glue dispensers, Screw machines.
Why choose us over other suppliers?
Ultra-professional service and expertise to provide high-performance equipment at competitive prices.
What services do we provide?
Accepted Delivery Terms: FOB, CIF, EXW, FCA, CPT; Accepted Payment Currency: USD, EUR, HKD, CNY; Accepted Payment Type: T/T, PayPal, Cash.
What is your warranty policy?
1-Year Warranty for unit machine and 3-year warranty for main board.
Can I purchase samples?
Yes! Welcome to place sample orders to test our superior quality and service.
Are you a trading company or manufacturer?
We are professional automation machine manufacturers since 2015.
